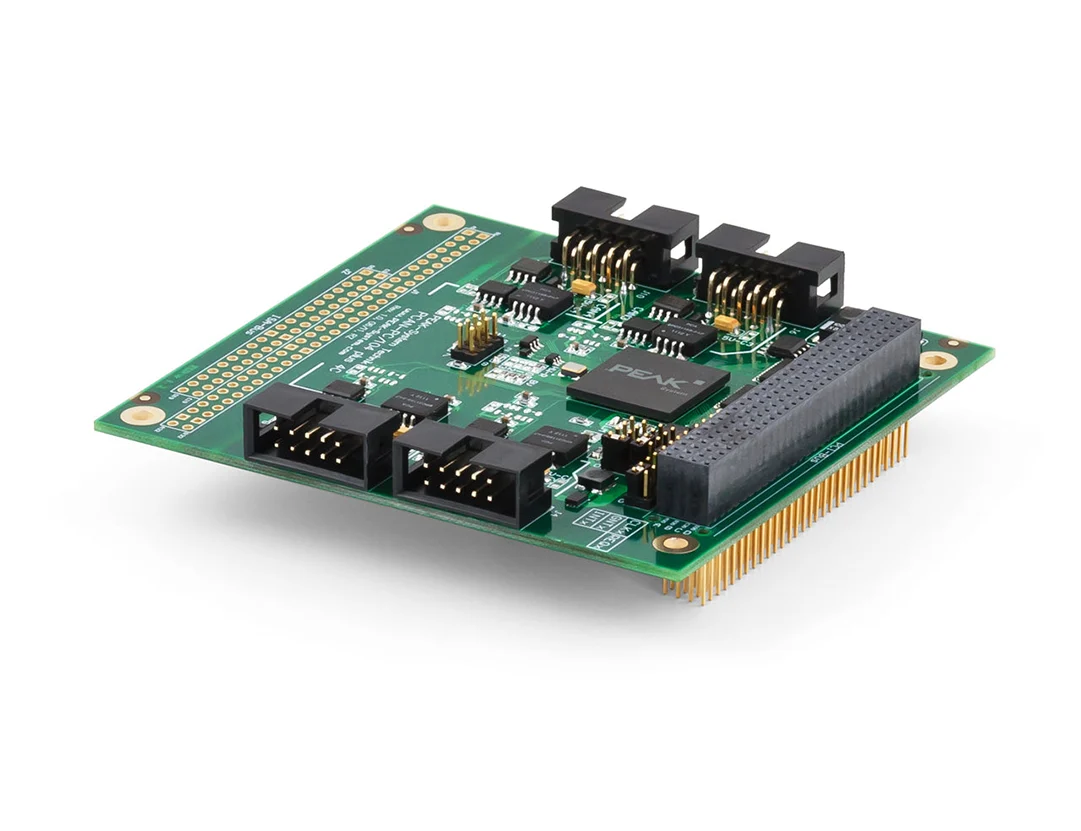

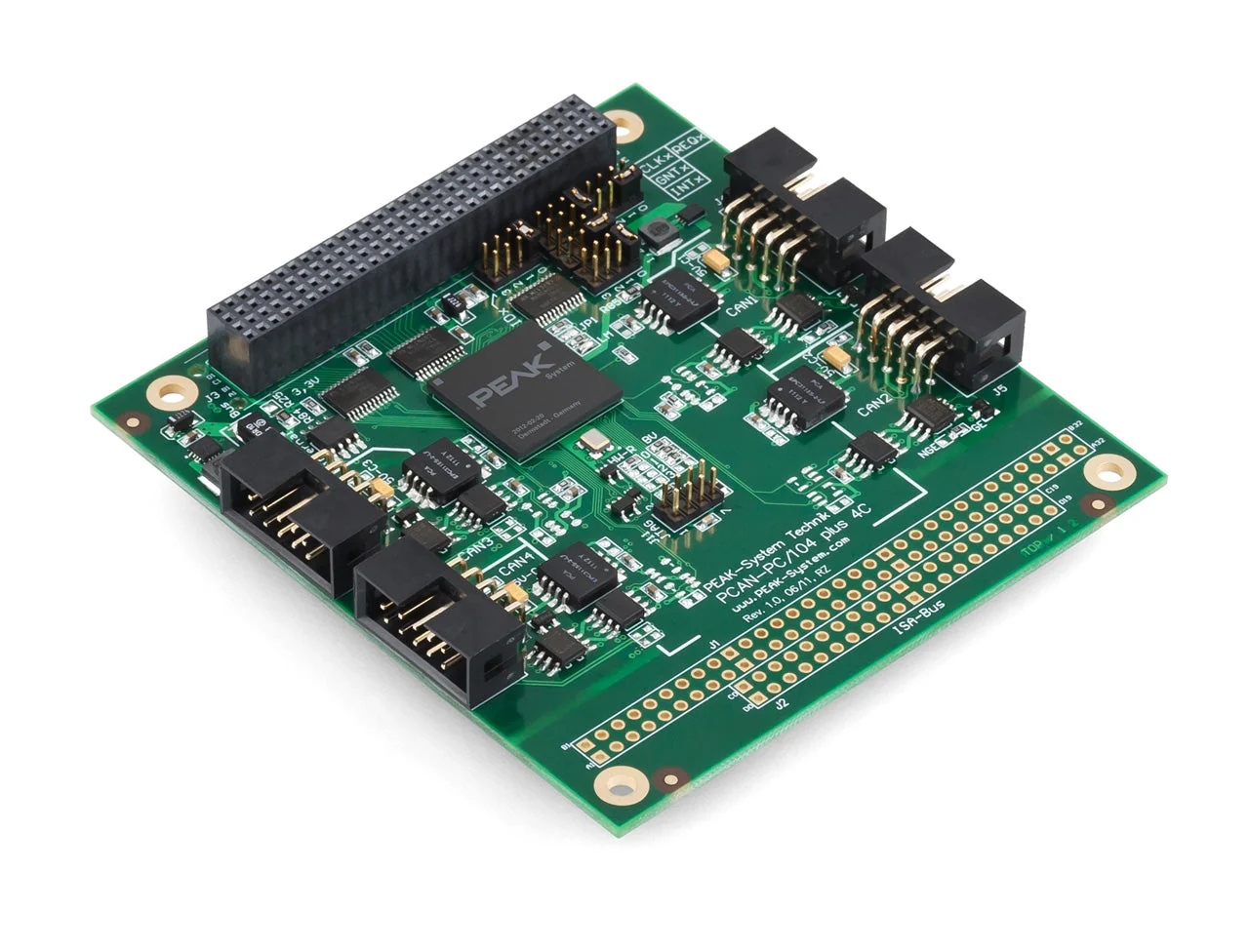

PCAN-PC/104-Plus Quad
The PCAN-PC/104-Plus Quad card enables the connection of four CAN networks to a PC/104-Plus system. Up to four cards can be operated, with each piggy-backing off the next. The CAN bus is connected using a 9-pin D-Sub plug on the slot brackets supplied. There is galvanic isolation of up to 500 Volts between the computer and CAN sides.
The package is also supplied with the CAN monitor PCAN-View for Windows® and the programming interface PCAN-Basic.
Scope of Supply
- PCAN-PC/104-Plus Quad card
- Two slot brackets with D-Sub connectors for the CAN bus
- Device drivers for Windows® 10, 8.1 and Linux (32/64-Bit)
- CAN monitor PCAN-View for Windows® Details ...
- Programming interface PCAN-Basic for developing applications with CAN connection Details ...
- Programming interfaces for standardized protocols from the automotive sector
- Manual in PDF format
Original: $1,242.21
-65%$1,242.21
$434.77Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The PCAN-PC/104-Plus Quad card enables the connection of four CAN networks to a PC/104-Plus system. Up to four cards can be operated, with each piggy-backing off the next. The CAN bus is connected using a 9-pin D-Sub plug on the slot brackets supplied. There is galvanic isolation of up to 500 Volts between the computer and CAN sides.
The package is also supplied with the CAN monitor PCAN-View for Windows® and the programming interface PCAN-Basic.
Scope of Supply
- PCAN-PC/104-Plus Quad card
- Two slot brackets with D-Sub connectors for the CAN bus
- Device drivers for Windows® 10, 8.1 and Linux (32/64-Bit)
- CAN monitor PCAN-View for Windows® Details ...
- Programming interface PCAN-Basic for developing applications with CAN connection Details ...
- Programming interfaces for standardized protocols from the automotive sector
- Manual in PDF format
