PAE-Media Converter

The PAE-Media Converter allows conversion between Standard Ethernet and Single-Pair Ethernet (SPE), which is typically used in the automotive and industrial sectors. This, for example, enables a PC to easily communicate with a vehicle control unit.

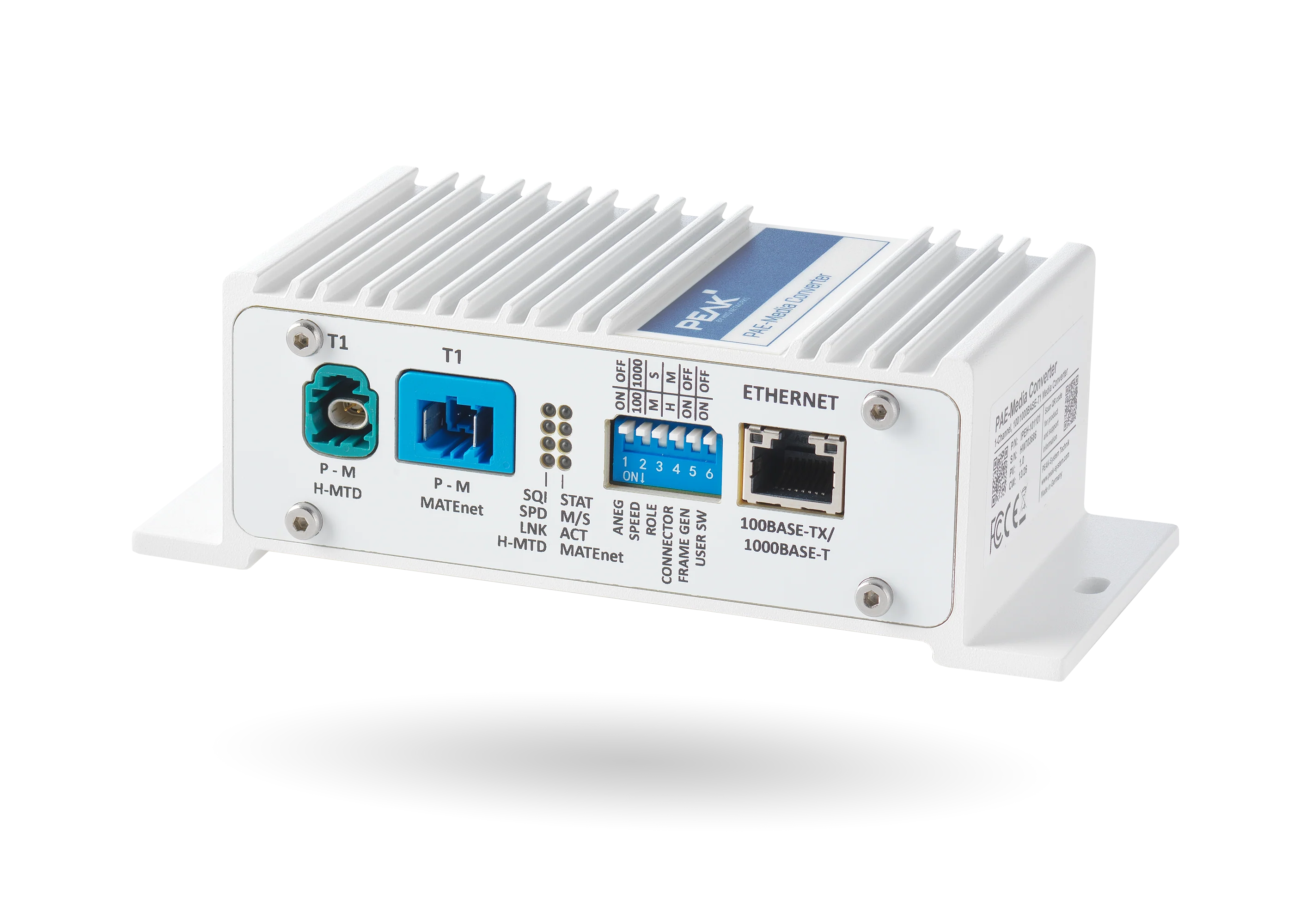

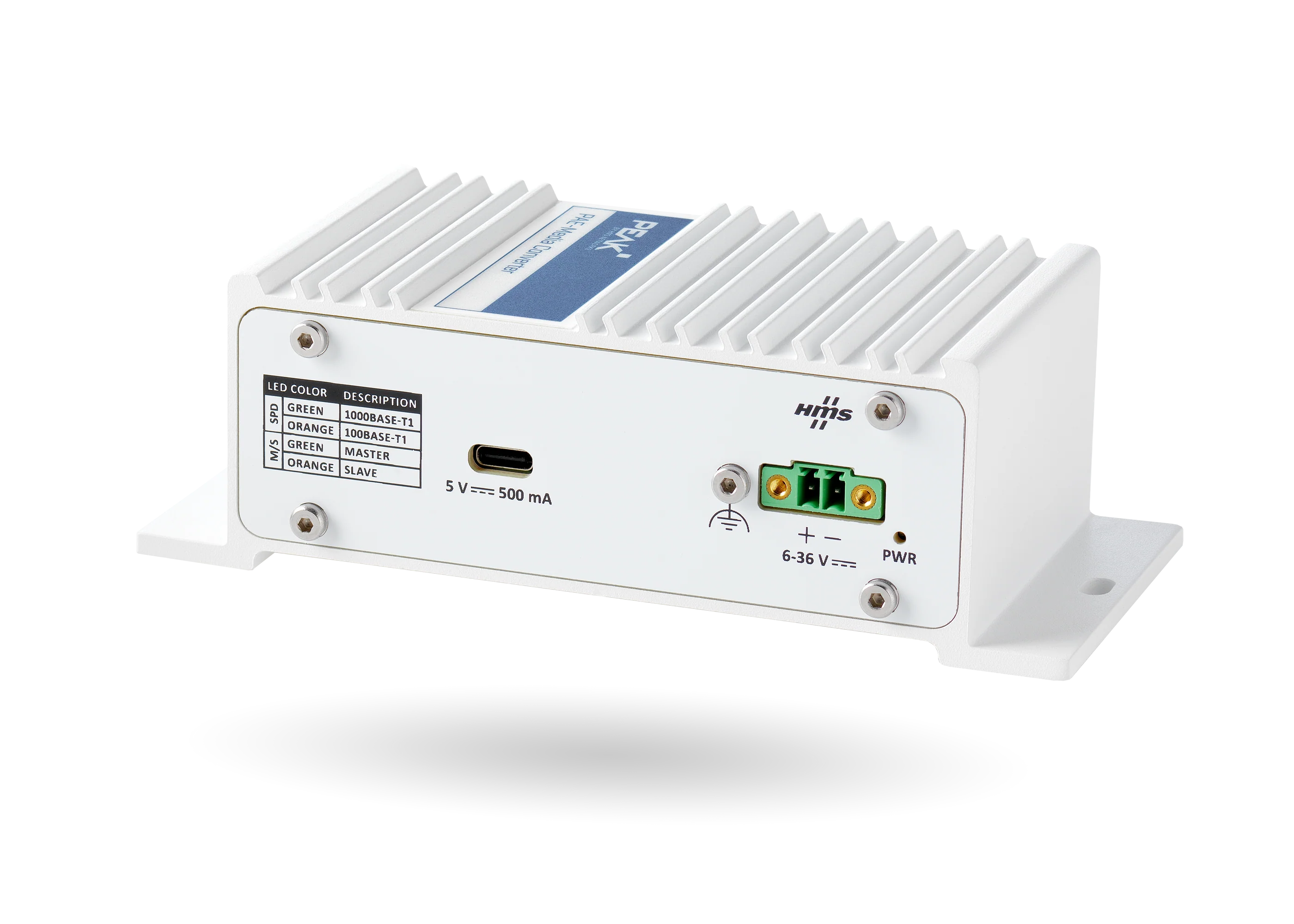

The converter provides transparent bit-level communication with support for Fast Ethernet and Gigabit Ethernet. The speeds of 100/1000 Mbit/s can be set manually or determined via auto-negotiation. Thanks to the dual-interface design with H-MTD and MATEnet connectors for Single-Pair Ethernet, as well as power supply via USB or Phoenix connector, the device can be flexibly integrated into various application environments.

The device is configured using DIP switches, also during operation. Furthermore, the PAE Media Converter supports software-based configuration over the USB connection via a USB API. This allows, for example, SPE communication failures to be generated automatically in order to validate vehicle behavior on test benches.

Note: Cables with H-MTD or MATEnet connectors will be available soon.
