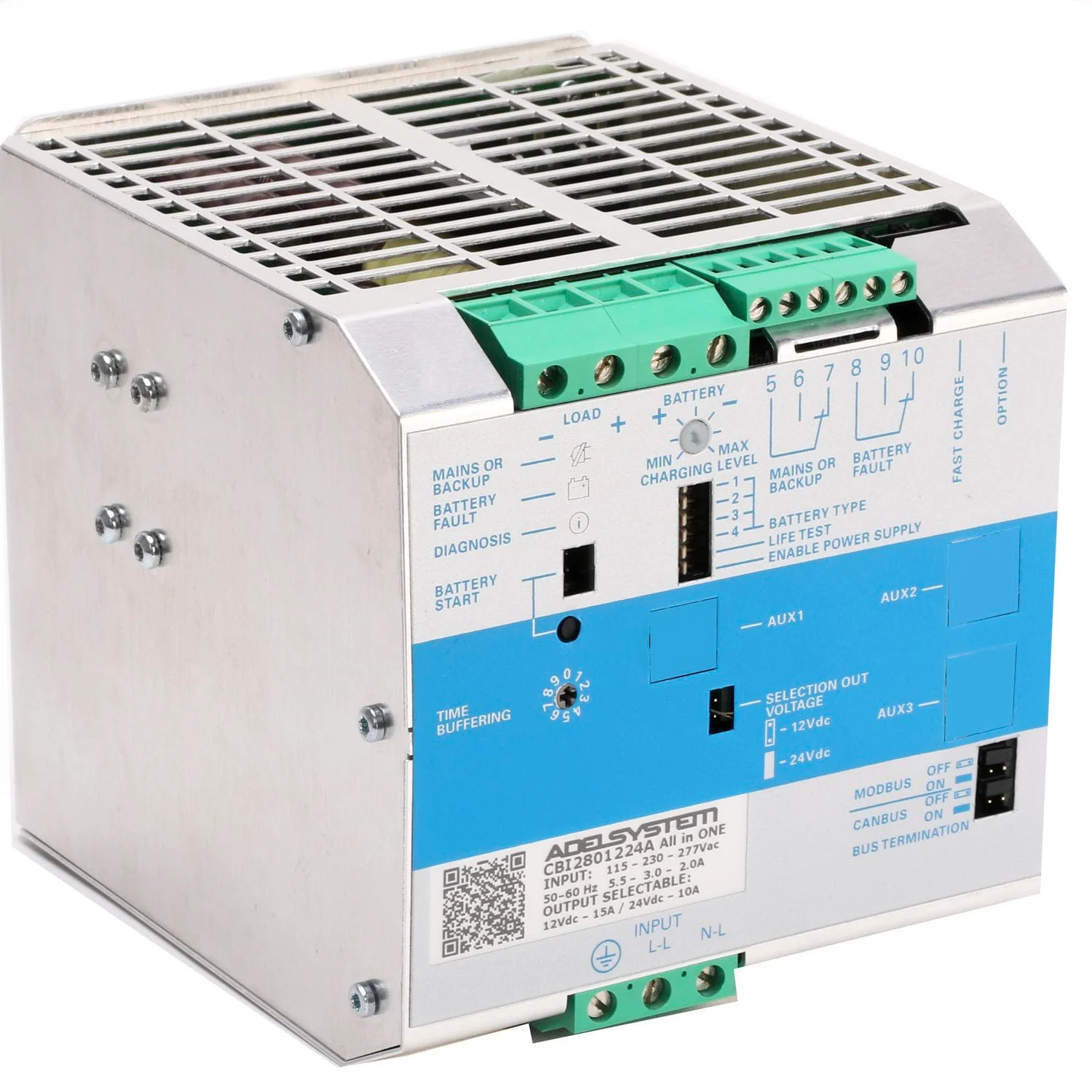

DC-UPS All In One MODbus Connection, In:115-230-277Vac Out:12-24V 280W

Input: Single-phase 115 – 230 - 277 Vac
Output Selectable Load: 12 Vdc 15A; 24 Vdc 10A
Output Battery charging: 12 Vdc 15A; 24 Vdc 10A

Suited for the following battery types: Open Lead Acid, Sealed Lead Acid, Lead Gel, Lead Crystal, Ni-Cd, Ni-MH, Li- Ion

Automatic diagnostic of battery status. Charging curve IUoU, constant voltage and constant current Battery Life Test function (Battery Care)
Four charging levels: Boost, Absorption, Float, Recovery Protected against short circuit and inverted polarity Signal output (contact free) for discharged or damaged battery
Signal output (contact free) for mains or Back-UP Modbus RTU for all parameter battery and system Protection degree IP20
DIN rail; Space saving
